Choke-Mount Hardware for Small Toroidal Components

Choke-Mount hardwareChoke-Mount hardware

Toroid's Choke-Mount hardware in green Nylon helps you to easily and securely mount small size toroidals horizontally onto Printed Circuit Boards by using a screw through the center hole of the Choke-Mount. The flange is curved to accommodated the shape of the toroid.

FOR PRICING, PLEASE CALL (410.860.0300) OR EMAIL (SALES@TOROID.COM) THE FACTORY

FOR THE DATA SHEET, PLEASE CLICK ON THE PART NUMBER BELOW

Choke Mount Data

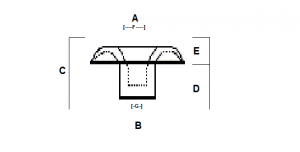

 Choke-MountChoke-Mount
Mechanical Dimensions: mm/Inches
 Part
No.		ABCDEFG
 PR 2525.0/0.9811.0/0.438.0/0.327.0/0.283.0/0.128.0/0.323.2/0.13
 PR 4242.0/1.6514.0/0.5515.0/0.5912.0/0.475.0/0.209.0/0.353.2/0.13


Data subject to change without prior notice.
